How can I tell a pilot valve fault from a hydraulic pump fault?

Pilot-operated machines show it in the pattern of failures. If one or two functions are dead or slow but the rest are normal, the fault is almost always in the pilot circuit, the pilot valve or the related solenoid. If every function is slow and the machine is weak in all directions at the same time, the pump, the relief setting or the suction side is the place to start. Measuring pilot pressure at the valve takes minutes and settles the question before any part is ordered.

How do I request a quotation for a pilot valve or solenoid valve, and how fast will I get a reply?

Send the machine model and serial number, the part number moulded or stamped on the valve if it is readable, a photograph of the valve and its connector, the coil voltage if marked, the quantity, and the destination port through the contact page of Guangzhou Shenyue Machinery Technology Co., Ltd. Quotations normally come back within 24 hours, with the valve body, the coil and the seal kit priced on separate lines and the grade of each line stated in writing.

Are aftermarket solenoid valves reliable enough for daily work?

For standard on-off functions a good aftermarket valve is normal practice and widely used. For proportional valves that meter flow, or for valves on the safety circuit such as boom-lock and slew-brake units, the control characteristic matters more than the external appearance, so original-channel supply or a documented OEM-quality line is the safer recommendation.

Excavator Pilot Valves, Solenoid Valves and Relief Valves: Cross-Brand Buying Guide

Hydraulics Guide · October 1, 2026 · Guangzhou, China

Excavator Pilot Valves, Solenoid Valves and Relief Valves: Diagnosis and Cross-Brand Buying

Solenoid valves and coils held in the Shenyue warehouse

Solenoid and proportional valve bodies

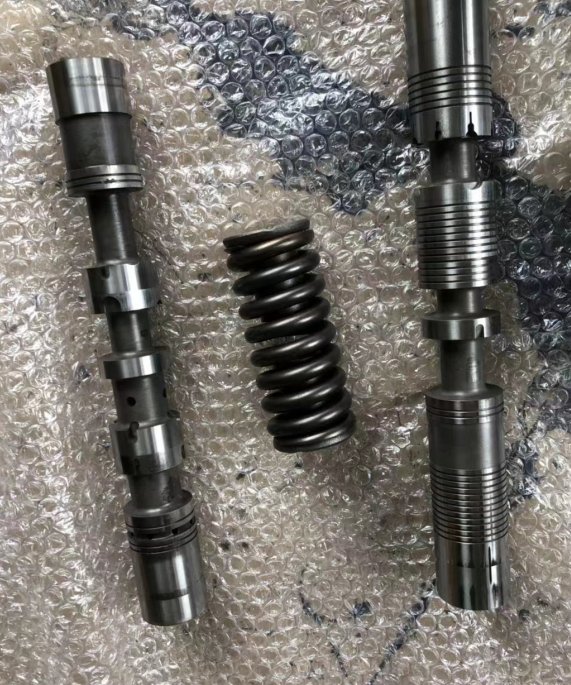

Main control valve assemblies and cartridge components

A pilot valve costs a tiny fraction of a hydraulic pump and produces symptoms that get mistaken for one. When one function on an excavator dies, creeps or refuses to hold while every other function behaves normally, the fault is usually in the pilot circuit - the joystick or travel pilot valve, the proportional solenoid, the relief cartridge or the slow-return check. This guide explains how to separate pilot faults from pump faults across the brands we supply every day, and how to buy the right valve the first time. Guangzhou Shenyue Machinery Technology Co., Ltd. quotes these parts from its Guangzhou warehouse.

Corbay is the international export brand of Guangzhou Shenyue Machinery Technology Co., Ltd., Guangzhou, China. The company supplies excavator parts for more than 100 machine brands, holds 3,000+ part types on the shelf, and can order 100,000+ part numbers through original supply channels.

Which Valve Is Which

Pilot (PPC) valve.The lever or pedal valve that turns a small movement of the joystick into a pilot oil signal. Two, four or six spools depending on the machine.

Proportional solenoid valve.Electrically meters the pilot pressure - used for travel speed, boom priority, swing priority and attachment flow.

On-off solenoid valve.Switches a circuit, commonly the slew brake release, the two-speed travel or an attachment lock.

Main and pilot relief valves.Set the system ceiling. A tired relief valve mimics a weak pump exactly.

Slow-return and check valves.The small parts behind boom drift, arm creep and cylinder over-run.

Symptoms That Point at the Pilot Circuit

Four patterns are worth memorising. A single dead function with everything else normal points at the pilot valve spool or the solenoid for that function. A function that works but is slow and cannot be modulated points at the proportional solenoid or a blocked pilot filter. Creep and drift on one cylinder points at the slow-return valve, the holding valve or the spool, not the pump. A machine that will not travel straight and pulls to one side while the travel pressures are correct points at the travel pilot valve or the travel spool. In every one of those cases a gauge on the pilot line answers the question in minutes, and the wrong part is the most expensive thing a fitter can buy.

Reference Numbers We Quote

Concrete examples from our own catalogue: the travel pilot valve commonly quoted as YN30V00080F1 / YY30V00061F2 / 10181-0000A, the hand pilot valve PX30V00043F4 for the SK30 to SK75-8 classes, and the pilot valve YT22V00021F1C for the SK75-8. On the solenoid side we quote units such as 40C50-213 / YN35V00049F1K, the coil assembly 8KWE5A-30 / G24WR-832 / 50081009-9348 under YN35V00039F1, and the spare solenoid relief valve YN22V00035F1 for the SK200-9 class, alongside main relief valve references such as YN22V00001F4 / LC22V00011F1. Numbers like these are machine-specific, and where a reference is only commonly quoted rather than fully confirmed, the quotation says so - the nameplate and the number on the old valve are the authority.

What Decides Whether a Valve Fits

Five details separate a correct valve from a lookalike: the mounting and port pattern; the spool or cartridge type; the coil voltage and current - 12 V, 24 V and the connector moulding differ between machine generations; the relief setting or the metering characteristic; and the seal material. Two valves can be identical in appearance and different in all five. That is why we quote from the number on the old component and a photograph of the connector, not from the machine model alone. For hydraulic fundamentals on the pumps and valves downstream of the pilot circuit, Kawasaki Heavy Industries' khi.co.jp remains a useful neutral reference, while the Kobelco-focused site shenyuekobelco.com covers SK-series hydraulics model by model.

Genuine, OEM-Quality or Aftermarket - Valve by Valve

Buy genuine or original channel:proportional valves that meter flow, safety-circuit valves, and anything where the manufacturer publishes a calibration procedure.

OEM-quality is the default:pilot valves, travel pilot valves, standard relief cartridges and on-off solenoids on general-duty machines.

Aftermarket is normal:coils, connectors, seal kits and standard check valves, where the specification is published and easily verified.

What to Send for a Valve Quotation

Send the machine model and serial number; the number on the old valve, even if it is only partly readable; a photograph of the valve, its connector and its mounting; the coil voltage if marked; the quantity; and the destination port. Quotations normally come back within 24 hours with the body, the coil and the seal kit priced separately, and photographs of the actual goods before dispatch. Where a valve is only available as a complete assembly, the quotation says so rather than leaving the buyer to discover it on arrival.

Browse Hydraulic Parts Request a Valve Quote

Valve Buying - FAQ

Can I replace only the coil?On many unit types yes, and it is the cheap repair when the valve body is sound. Send a photograph of the coil and the connector moulding; the voltage and the fixing are what decide the match.

Do you supply valves for Chinese-built machines?Yes - Sany, XCMG, Lonking and other Chinese brands use established valve families, and we quote them from the same warehouse as the Japanese, Korean and European machines.

How do I request a quotation and when will I hear back?Send the model, serial number, valve number and photographs through the contact page - Guangzhou Shenyue Machinery Technology Co., Ltd. normally answers within 24 hours with every line priced and graded.

Buy the Valve, Not the Guess

The cheapest valve is the correct one. Measure the pilot pressure, read the number on the old component, photograph the connector, and send the details to the team at Guangzhou Shenyue Machinery Technology Co., Ltd. The valve will be identified, quoted in every available grade, and photographed before it is packed in Guangzhou.
