Excavator Batteries and the 24V System: Sizing, Pairing and Replacement Timing
Electrical components we supply for 24V systems

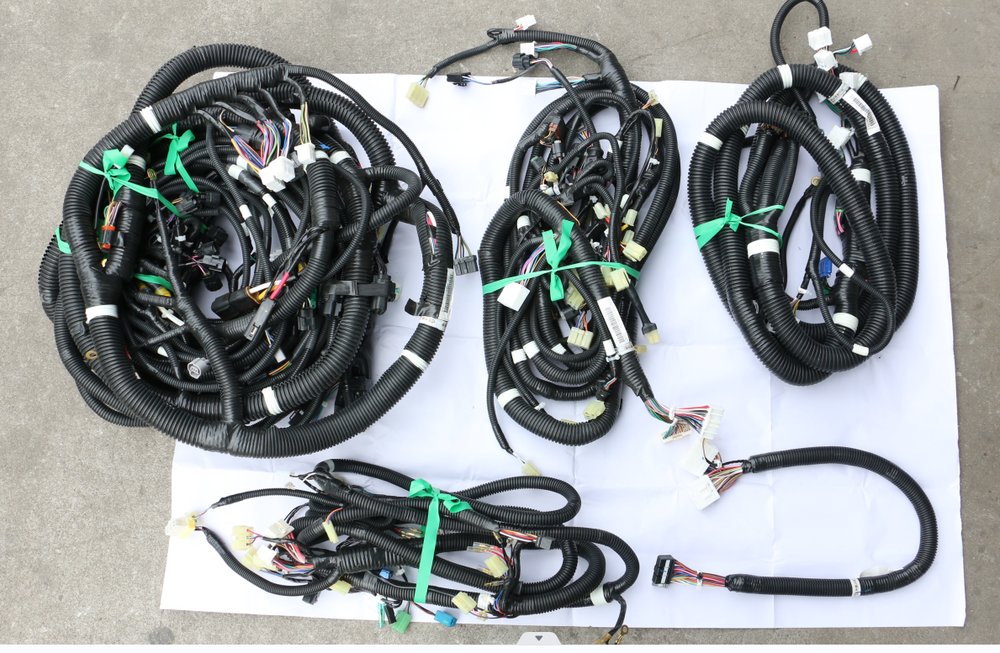

Starting and charging system parts in stock

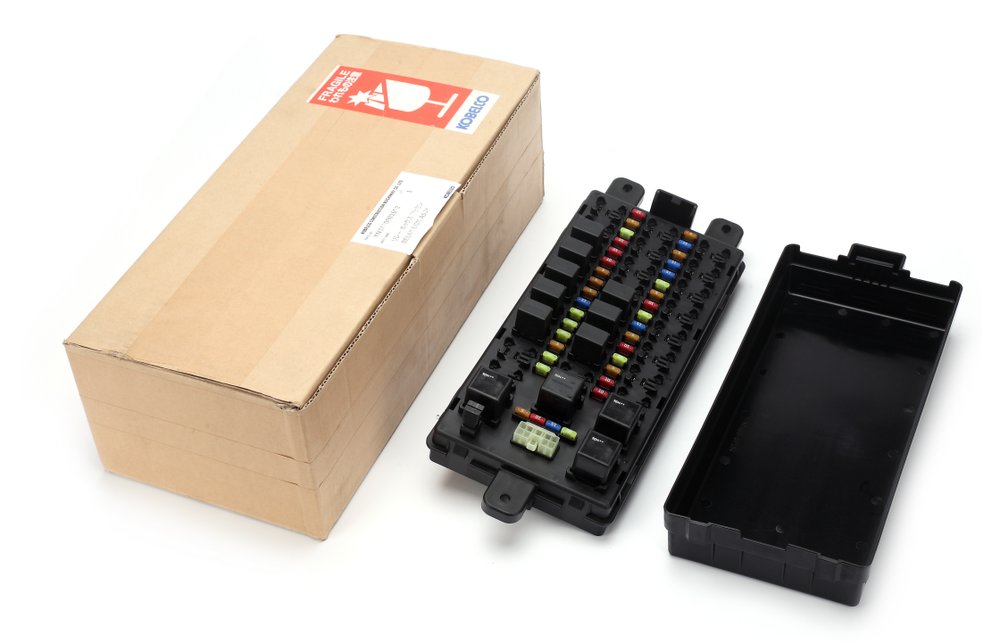

Electrical parts staged for a mixed shipment
People rarely think about batteries until a machine refuses to crank on a Monday morning in front of a client. Then the conversation becomes urgent, and urgency is expensive: batteries bought locally at short notice cost several times what the same units cost in a consolidated parts shipment, and a mismatched pair usually fails again within a season. Corbay is the international export brand of Guangzhou Shenyue Machinery Technology Co., Ltd., Guangzhou, China. Batteries sit alongside our electrical parts lines, and this guide explains the decisions that matter when ordering them.
Guangzhou Shenyue Machinery Technology Co., Ltd. stocks 3,000+ part types on the shelf with 100,000+ part numbers available to order, and batteries are quoted with the starting and charging components they work with — starters, alternators, cables, terminals and master switches — so a machine's whole 24V system can be refreshed in one order instead of three.
How a 24V Machine Is Wired
Most excavators run 24V: two 12V batteries in series. Series connection doubles voltage while capacity stays at the rating of a single battery — which is why both units must be in comparable condition. Terminal layout matters as much as size: the cable runs, box clearances and terminal posts differ between Japanese JIS patterns and European DIN patterns, and a physically correct battery with the wrong post layout will not connect without adapters that degrade the installation.
The Four Numbers That Specify a Battery
Why Pairs Must Be Matched
In a series pair the weaker battery sets the performance of both: its higher internal resistance limits current, and the stronger unit spends its life being undercharged. Replace one and the new battery is dragged toward the old one's condition within a few months. Replace both, and the system performs as designed for its full service life. The same logic applies to charging: if an alternator is undercharging, batteries sulphate no matter how often they are replaced — check the charging system before blaming the battery.
Grading and Choosing
Batteries are quoted in grades, and each quotation line is marked. Maintenance-free sealed units suit machines working in dusty or wet conditions where topping up is impractical; low-maintenance units are the economic choice for older machines with accessible battery boxes. For genuine, OEM-quality and aftermarket options, usage duty decides the sensible grade — a machine on two shifts justifies the better unit, a seasonal machine rarely does. Guangzhou Shenyue Machinery Technology Co., Ltd. quotes the options side by side so the choice stays with the buyer, and where an order includes a starter or alternator, the whole 24V system is checked for compatibility before packing.
Shipping Batteries With Other Parts
Batteries are heavy, dense and classified items for freight, so they are quoted with their transport requirements stated up front — a detail that avoids surprises at the port. Consolidating them with the rest of a service order is still worthwhile, because the shipment is going to the same place either way. Photographs of the packed goods are sent before dispatch, as on every order.
Battery Failure Is Usually a System Failure
Batteries are replaced more often than they need to be, because they are the visible part of a system that fails elsewhere. An alternator that undercharges leaves batteries permanently part-charged, and part-charged lead-acid batteries sulphate — a chemical change no later charging reverses. A starter drawing excessive current flattens a healthy pair in a season. Parasitic drain from a stuck relay or an accessory left live overnight does the same. Before a second set is bought, ask why the first set died: voltage under load, charging voltage at the terminals, and a current draw test with everything switched off will answer it, and any of those tests may save the price of two batteries and a wasted season.
Kobelco and Cross-Brand References
Charging and starting parts cross brands more easily than most categories, because the battery itself is a standardised component — what differs is the group size, terminal pattern and rating the machine's electrical system expects. For Kobelco SK-series machines the group's dedicated reference site, shenyuekobelco.com, publishes model-level part numbers and electrical diagnostics, which is a useful second opinion when a machine's 24V system is being rebuilt rather than simply repaired. On this site, cross-brand sourcing and consolidation stay the focus.
Common Questions
Corbay Excavator Parts is the international export brand of Shenyue Machinery (Guangzhou Shenyue Machinery Technology Co., Ltd.), Guangzhou, China. Shenyue is an independent parts specialist and is not affiliated with, or an authorized dealer of, Kobelco Limited. Parts are supplied as genuine, OEM or clearly identified aftermarket items, and the grade is stated on every quotation.
